O型圈
【材质】 NBR、XNBR、HNBR、EPDM、VMQ、FVMQ、Viton®、Aflas®、FFKM(Kalrez®)
【工作温度】-50℃ to 327℃
【产品规格】适用标准AS568A、JIS B2401、GB/T3452.1（ISO3601）等
对于内径1米以上的大密封圈有很好的加工经验。
1、 美国AS568标准
|
AS568-0xx 规格：截面直径d2=1.78mm
|
|
AS568编号
|
内径d1(mm)
|
截面直径d2(mm)
|
AS568编号
|
内径d1(mm)
|
截面直径d2(mm)
|
|
尺寸
|
公差（±）
|
尺寸
|
公差（±）
|
|
AS568-001*
|
0.74
|
0.10
|
1.02
±0.08
|
AS568-026
|
31.47
|
0.28
|
1.78
±0.08
|
|
AS568-002*
|
1.07
|
0.10
|
1.27
±0.08
|
AS568-027
|
33.05
|
0.28
|
|
AS568-003*
|
1.42
|
0.10
|
1.53
±0.08
|
AS568-028
|
34.65
|
0.33
|
|
AS568-004
|
1.78
|
0.13
|
1.78
±0.08
|
AS568-029
|
37.82
|
0.33
|
|
AS568-005
|
2.57
|
0.13
|
AS568-030
|
41.00
|
0.33
|
|
AS568-006
|
2.90
|
0.13
|
AS568-031
|
44.17
|
0.38
|
|
AS568-007
|
3.69
|
0.13
|
AS568-032
|
47.37
|
0.38
|
|
AS568-008
|
4.47
|
0.13
|
AS568-033
|
50.52
|
0.46
|
|
AS568-009
|
5.28
|
0.13
|
AS568-034
|
53.67
|
0.46
|
|
AS568-010
|
6.07
|
0.13
|
AS568-035
|
56.87
|
0.46
|
|
AS568-011
|
7.66
|
0.13
|
AS568-036
|
60.04
|
0.46
|
|
AS568-012
|
9.25
|
0.13
|
AS568-037
|
63.22
|
0.46
|
|
AS568-013
|
10.82
|
0.13
|
AS568-038
|
66.40
|
0.51
|
|
AS568-014
|
12.42
|
0.13
|
AS568-039
|
69.57
|
0.51
|
|
AS568-015
|
14.00
|
0.18
|
AS568-040
|
72.76
|
0.51
|
|
AS568-016
|
15.60
|
0.23
|
AS568-041
|
75.92
|
0.61
|
|
AS568-017
|
17.16
|
0.23
|
AS568-042
|
82.27
|
0.61
|
|
AS568-018
|
18.77
|
0.23
|
AS568-043
|
88.62
|
0.61
|
|
AS568-019
|
20.35
|
0.23
|
AS568-044
|
94.97
|
0.69
|
|
AS568-020
|
21.95
|
0.23
|
AS568-045
|
101.32
|
0.69
|
|
AS568-021
|
23.52
|
0.23
|
AS568-046
|
107.67
|
0.76
|
|
AS568-022
|
25.12
|
0.25
|
AS568-047
|
114.02
|
0.76
|
|
AS568-023
|
26.70
|
0.25
|
AS568-048
|
120.37
|
0.76
|
|
AS568-024
|
28.30
|
0.25
|
AS568-049
|
126.72
|
0.94
|
|
AS568-025
|
29.87
|
0.28
|
AS568-050
|
133.07
|
0.94
|
附注：AS568-001 截面直径d2=1.02 mm
AS568-002 截面直径d2=1.27 mm
AS568-003 截面直径d2=1.52 mm
|
AS568-1xx 规格：截面直径d2=2.62mm
|
|
AS568编号
|
内径d1(mm)
|
截面直径d2(mm)
|
AS568编号
|
内径d1(mm)
|
截面直径d2(mm)
|
|
尺寸
|
公差（±）
|
尺寸
|
公差（±）
|
|
AS568-102
|
1.24
|
0.10
|
2.62
±0.08
|
AS568-141
|
58.42
|
0.51
|
2.62
±0.08
|
|
AS568-103
|
2.06
|
0.13
|
AS568-142
|
59.99
|
0.51
|
|
AS568-104
|
2.84
|
0.13
|
AS568-143
|
61.60
|
0.51
|
|
AS568-105
|
3.63
|
0.13
|
AS568-144
|
63.17
|
0.51
|
|
AS568-106
|
4.42
|
0.13
|
AS568-145
|
64.77
|
0.51
|
|
AS568-107
|
5.23
|
0.13
|
AS568-146
|
66.34
|
0.51
|
|
AS568-108
|
6.02
|
0.13
|
AS568-147
|
67.95
|
0.56
|
|
AS568-109
|
7.59
|
0.13
|
AS568-148
|
69.52
|
0.56
|
|
AS568-110
|
9.19
|
0.13
|
AS568-149
|
71.12
|
0.56
|
|
AS568-111
|
10.77
|
0.13
|
AS568-150
|
72.69
|
0.56
|
|
AS568-112
|
12.37
|
0.13
|
AS568-151
|
75.87
|
0.61
|
|
AS568-113
|
13.94
|
0.18
|
AS568-152
|
82.22
|
0.61
|
|
AS568-114
|
15.54
|
0.23
|
AS568-153
|
88.57
|
0.61
|
|
AS568-115
|
17.12
|
0.23
|
AS568-154
|
94.92
|
0.71
|
|
AS568-116
|
18.72
|
0.23
|
AS568-155
|
101.27
|
0.71
|
|
AS568-117
|
20.29
|
0.25
|
AS568-156
|
107.62
|
0.76
|
|
AS568-118
|
21.89
|
0.25
|
AS568-157
|
113.97
|
0.76
|
|
AS568-119
|
23.47
|
0.25
|
AS568-158
|
120.32
|
0.76
|
|
AS568-120
|
25.07
|
0.25
|
AS568-159
|
126.67
|
0.89
|
|
AS568-121
|
26.64
|
0.25
|
AS568-160
|
133.02
|
0.89
|
|
AS568-122
|
28.24
|
0.25
|
AS568-161
|
139.37
|
0.89
|
|
AS568-123
|
29.82
|
0.30
|
AS568-162
|
145.72
|
0.89
|
|
AS568-124
|
31.42
|
0.30
|
AS568-163
|
152.07
|
0.89
|
|
AS568-125
|
32.99
|
0.30
|
AS568-164
|
158.42
|
1.02
|
|
AS568-126
|
34.59
|
0.30
|
AS568-165
|
164.77
|
1.02
|
|
AS568-127
|
36.17
|
0.30
|
AS568-166
|
171.12
|
1.02
|
|
AS568-128
|
37.77
|
0.30
|
AS568-167
|
177.47
|
1.02
|
|
AS568-129
|
39.34
|
0.38
|
AS568-168
|
183.82
|
1.14
|
|
AS568-130
|
40.94
|
0.38
|
AS568-169
|
190.17
|
1.14
|
|
AS568-131
|
42.52
|
0.38
|
AS568-170
|
196.52
|
1.14
|
|
AS568-132
|
44.12
|
0.38
|
AS568-171
|
202.87
|
1.14
|
|
AS568-133
|
45.69
|
0.38
|
AS568-172
|
209.22
|
1.27
|
|
AS568-134
|
47.29
|
0.43
|
AS568-173
|
215.57
|
1.27
|
|
AS568-135
|
48.90
|
0.43
|
AS568-174
|
221.92
|
1.27
|
|
AS568-136
|
50.47
|
0.43
|
AS568-175
|
228.27
|
1.27
|
|
AS568-137
|
52.07
|
0.43
|
AS568-176
|
234.62
|
1.40
|
|
AS568-138
|
53.64
|
0.43
|
AS568-177
|
240.97
|
1.40
|
|
AS568-139
|
55.25
|
0.43
|
AS568-178
|
247.32
|
1.40
|
|
AS568-140
|
56.82
|
0.43
|
|
|
|
|
AS568-2xx 规格：截面直径d2=3.53mm
|
|
AS568编号
|
内径d1(mm)
|
截面直径d2(mm)
|
AS568编号
|
内径d1(mm)
|
截面直径d2(mm)
|
|
尺寸
|
公差（±）
|
尺寸
|
公差（±）
|
|
AS568-201
|
4.34
|
0.13
|
3.53
±0.10
|
AS568-243
|
104.37
|
0.71
|
3.53
±0.10
|
|
AS568-202
|
5.94
|
0.13
|
AS568-244
|
107.54
|
0.76
|
|
AS568-203
|
7.52
|
0.13
|
AS568-245
|
110.72
|
0.76
|
|
AS568-204
|
9.12
|
0.13
|
AS568-246
|
113.89
|
0.76
|
|
AS568-205
|
10.69
|
0.13
|
AS568-247
|
117.07
|
0.76
|
|
AS568-206
|
12.29
|
0.13
|
AS568-248
|
120.24
|
0.76
|
|
AS568-207
|
13.87
|
0.18
|
AS568-249
|
123.42
|
0.89
|
|
AS568-208
|
15.47
|
0.23
|
AS568-250
|
126.59
|
0.89
|
|
AS568-209
|
17.04
|
0.23
|
AS568-251
|
129.77
|
0.89
|
|
AS568-210
|
18.64
|
0.25
|
AS568-252
|
132.94
|
0.89
|
|
AS568-211
|
20.22
|
0.25
|
AS568-253
|
136.12
|
0.89
|
|
AS568-212
|
21.82
|
0.25
|
AS568-254
|
139.29
|
0.89
|
|
AS568-213
|
23.39
|
0.25
|
AS568-255
|
142.47
|
0.89
|
|
AS568-214
|
24.99
|
0.25
|
AS568-256
|
145.64
|
0.89
|
|
AS568-215
|
26.57
|
0.25
|
AS568-257
|
148.82
|
0.89
|
|
AS568-216
|
28.17
|
0.30
|
AS568-258
|
151.99
|
0.89
|
|
AS568-217
|
29.74
|
0.30
|
AS568-259
|
158.34
|
1.02
|
|
AS568-218
|
31.34
|
0.30
|
AS568-260
|
164.69
|
1.02
|
|
AS568-219
|
32.92
|
0.30
|
AS568-261
|
171.04
|
1.02
|
|
AS568-220
|
34.52
|
0.30
|
AS568-262
|
177.39
|
1.02
|
|
AS568-221
|
36.09
|
0.30
|
AS568-263
|
183.74
|
1.14
|
|
AS568-222
|
37.69
|
0.38
|
AS568-264
|
190.09
|
1.14
|
|
AS568-223
|
40.87
|
0.38
|
AS568-265
|
196.44
|
1.14
|
|
AS568-224
|
44.04
|
0.38
|
AS568-266
|
202.79
|
1.14
|
|
AS568-225
|
47.22
|
0.46
|
AS568-267
|
209.14
|
1.27
|
|
AS568-226
|
50.39
|
0.46
|
AS568-268
|
215.49
|
1.27
|
|
AS568-227
|
53.57
|
0.46
|
AS568-269
|
221.84
|
1.27
|
|
AS568-228
|
56.74
|
0.51
|
AS568-270
|
228.19
|
1.27
|
|
AS568-229
|
59.92
|
0.51
|
AS568-271
|
234.54
|
1.40
|
|
AS568-230
|
63.09
|
0.51
|
AS568-272
|
240.89
|
1.40
|
|
AS568-231
|
66.27
|
0.51
|
AS568-273
|
247.24
|
1.40
|
|
AS568-232
|
69.44
|
0.61
|
AS568-274
|
253.59
|
1.40
|
|
AS568-233
|
72.62
|
0.61
|
AS568-275
|
266.29
|
1.40
|
|
AS568-234
|
75.79
|
0.61
|
AS568-276
|
278.99
|
1.65
|
|
AS568-235
|
78.97
|
0.61
|
AS568-277
|
291.69
|
1.65
|
|
AS568-236
|
82.14
|
0.61
|
AS568-278
|
304.39
|
1.65
|
|
AS568-237
|
85.32
|
0.61
|
AS568-279
|
329.79
|
1.65
|
|
AS568-238
|
88.49
|
0.61
|
AS568-280
|
355.19
|
1.65
|
|
AS568-239
|
91.67
|
0.71
|
AS568-281
|
380.59
|
1.65
|
|
AS568-240
|
94.84
|
0.71
|
AS568-282
|
405.26
|
1.91
|
|
AS568-241
|
98.02
|
0.71
|
AS568-283
|
430.66
|
2.03
|
|
AS568-242
|
101.19
|
0.71
|
AS568-284
|
456.06
|
2.16
|
|
AS568-3xx 规格：截面直径d2=5.33mm
|
|
AS568编号
|
内径d1(mm)
|
截面直径d2(mm)
|
AS568编号
|
内径d1(mm)
|
截面直径d2(mm)
|
|
尺寸
|
公差（±）
|
尺寸
|
公差（±）
|
|
AS568-309
|
10.46
|
0.13
|
5.33
±0.13
|
AS568-353
|
126.37
|
0.94
|
5.33
±0.13
|
|
AS568-310
|
12.07
|
0.13
|
AS568-354
|
129.54
|
0.94
|
|
AS568-311
|
13.64
|
0.18
|
AS568-355
|
132.72
|
0.94
|
|
AS568-312
|
15.24
|
0.23
|
AS568-356
|
135.89
|
0.94
|
|
AS568-313
|
16.81
|
0.23
|
AS568-357
|
139.07
|
0.94
|
|
AS568-314
|
18.42
|
0.25
|
AS568-358
|
142.24
|
0.94
|
|
AS568-315
|
19.99
|
0.25
|
AS568-359
|
145.42
|
0.94
|
|
AS568-316
|
21.59
|
0.25
|
AS568-360
|
148.59
|
0.94
|
|
AS568-317
|
23.16
|
0.25
|
AS568-361
|
151.77
|
0.94
|
|
AS568-318
|
24.77
|
0.25
|
AS568-362
|
158.12
|
1.02
|
|
AS568-319
|
26.34
|
0.25
|
AS568-363
|
164.47
|
1.02
|
|
AS568-320
|
27.94
|
0.30
|
AS568-364
|
170.82
|
1.02
|
|
AS568-321
|
29.51
|
0.30
|
AS568-365
|
177.17
|
1.02
|
|
AS568-322
|
31.12
|
0.30
|
AS568-366
|
183.52
|
1.14
|
|
AS568-323
|
32.69
|
0.30
|
AS568-367
|
189.87
|
1.14
|
|
AS568-324
|
34.29
|
0.30
|
AS568-368
|
196.22
|
1.14
|
|
AS568-325
|
37.47
|
0.38
|
AS568-369
|
202.57
|
1.14
|
|
AS568-326
|
40.64
|
0.38
|
AS568-370
|
208.92
|
1.27
|
|
AS568-327
|
43.82
|
0.38
|
AS568-371
|
215.27
|
1.27
|
|
AS568-328
|
46.99
|
0.38
|
AS568-372
|
221.62
|
1.27
|
|
AS568-329
|
50.17
|
0.46
|
AS568-373
|
227.97
|
1.27
|
|
AS568-330
|
53.34
|
0.46
|
AS568-374
|
234.32
|
1.40
|
|
AS568-331
|
56.52
|
0.46
|
AS568-375
|
240.67
|
1.40
|
|
AS568-332
|
59.69
|
0.46
|
AS568-376
|
247.02
|
1.40
|
|
AS568-333
|
62.87
|
0.51
|
AS568-377
|
253.37
|
1.40
|
|
AS568-334
|
66.04
|
0.51
|
AS568-378
|
266.07
|
1.52
|
|
AS568-335
|
69.22
|
0.51
|
AS568-379
|
278.77
|
1.52
|
|
AS568-336
|
72.39
|
0.51
|
AS568-380
|
291.47
|
1.65
|
|
AS568-337
|
75.57
|
0.61
|
AS568-381
|
304.17
|
1.65
|
|
AS568-338
|
78.74
|
0.61
|
AS568-382
|
329.57
|
1.65
|
|
AS568-339
|
81.92
|
0.61
|
AS568-383
|
354.97
|
1.78
|
|
AS568-340
|
85.09
|
0.61
|
AS568-384
|
380.37
|
1.78
|
|
AS568-341
|
88.27
|
0.61
|
AS568-385
|
405.26
|
1.91
|
|
AS568-342
|
91.44
|
0.71
|
AS568-386
|
430.66
|
2.03
|
|
AS568-343
|
94.62
|
0.71
|
AS568-387
|
456.06
|
2.16
|
|
AS568-344
|
97.79
|
0.71
|
AS568-388
|
481.46
|
2.29
|
|
AS568-345
|
100.97
|
0.71
|
AS568-389
|
506.86
|
2.41
|
|
AS568-346
|
104.14
|
0.71
|
AS568-390
|
532.26
|
2.41
|
|
AS568-347
|
107.32
|
0.76
|
AS568-391
|
557.66
|
2.54
|
|
AS568-348
|
110.49
|
0.76
|
AS568-392
|
582.68
|
2.67
|
|
AS568-349
|
113.67
|
0.76
|
AS568-393
|
608.08
|
2.79
|
|
AS568-350
|
116.84
|
0.76
|
AS568-394
|
633.48
|
2.92
|
|
AS568-351
|
120.02
|
0.76
|
AS568-395
|
658.88
|
3.05
|
|
AS568-352
|
123.19
|
0.76
|
|
|
|
|
AS568-4xx 规格：截面直径d2=6.99mm
|
|
AS568编号
|
内径d1(mm)
|
截面直径d2(mm)
|
AS568编号
|
内径d1(mm)
|
截面直径d2(mm)
|
|
尺寸
|
公差（±）
|
尺寸
|
公差（±）
|
|
AS568-425
|
113.67
|
0.84
|
6.99
±0.15
|
AS568-451
|
278.77
|
1.52
|
6.99
±0.15
|
|
AS568-426
|
116.84
|
0.84
|
AS568-452
|
291.47
|
1.52
|
|
AS568-427
|
120.02
|
0.84
|
AS568-453
|
304.17
|
1.52
|
|
AS568-428
|
123.19
|
0.84
|
AS568-454
|
316.87
|
1.52
|
|
AS568-429
|
126.37
|
0.94
|
AS568-455
|
329.57
|
1.52
|
|
AS568-430
|
129.54
|
0.94
|
AS568-456
|
342.27
|
1.78
|
|
AS568-431
|
132.72
|
0.94
|
AS568-457
|
354.97
|
1.78
|
|
AS568-432
|
135.89
|
0.94
|
AS568-458
|
367.67
|
1.78
|
|
AS568-433
|
139.07
|
0.94
|
AS568-459
|
380.37
|
1.78
|
|
AS568-434
|
142.24
|
0.94
|
AS568-460
|
393.07
|
1.78
|
|
AS568-435
|
145.42
|
0.94
|
AS568-461
|
405.26
|
1.91
|
|
AS568-436
|
148.59
|
0.94
|
AS568-462
|
417.96
|
1.91
|
|
AS568-437
|
151.77
|
0.94
|
AS568-463
|
430.66
|
2.03
|
|
AS568-438
|
158.12
|
1.02
|
AS568-464
|
443.36
|
2.16
|
|
AS568-439
|
164.47
|
1.02
|
AS568-465
|
456.06
|
2.16
|
|
AS568-440
|
170.82
|
1.02
|
AS568-466
|
468.76
|
2.16
|
|
AS568-441
|
177.17
|
1.02
|
AS568-467
|
481.46
|
2.29
|
|
AS568-442
|
183.52
|
1.14
|
AS568-468
|
494.16
|
2.29
|
|
AS568-443
|
189.87
|
1.14
|
AS568-469
|
506.86
|
2.41
|
|
AS568-444
|
196.22
|
1.14
|
AS568-470
|
532.26
|
2.41
|
|
AS568-445
|
202.57
|
1.14
|
AS568-471
|
557.66
|
2.54
|
|
AS568-446
|
215.27
|
1.40
|
AS568-472
|
582.68
|
2.67
|
|
AS568-447
|
227.97
|
1.40
|
AS568-473
|
608.08
|
2.79
|
|
AS568-448
|
240.67
|
1.40
|
AS568-474
|
633.48
|
2.92
|
|
AS568-449
|
253.37
|
1.40
|
AS568-475
|
658.88
|
3.05
|
|
AS568-450
|
266.07
|
1.52
|
|
|
|
|
AS568-9xx 规格：接头和管路用O形圈
|
|
AS568编号
|
内径d1(mm)
|
截面直径d2(mm)
|
AS568编号
|
内径d1(mm)
|
截面直径d2(mm)
|
|
尺寸
|
公差（±）
|
尺寸
|
公差（±）
|
|
AS568-901
|
4.70
|
0.13
|
1.42
±0.08
|
AS568-911
|
21.92
|
0.23
|
2.95
±0.10
|
|
AS568-902
|
6.07
|
0.13
|
1.63
±0.08
|
AS568-912
|
23.47
|
0.23
|
|
AS568-903
|
7.65
|
0.13
|
AS568-913
|
25.04
|
0.25
|
|
AS568-904
|
8.92
|
0.13
|
1.83
±0.08
|
AS568-914
|
26.59
|
0.25
|
|
AS568-905
|
10.52
|
0.13
|
AS568-916
|
29.74
|
0.25
|
|
AS568-906
|
11.89
|
0.13
|
1.98
±0.08
|
AS568-918
|
34.42
|
0.30
|
|
AS568-907
|
13.46
|
0.18
|
2.08
±0.08
|
AS568-920
|
37.47
|
0.36
|
3.00
±0.10
|
|
AS568-908
|
16.36
|
0.23
|
2.21
±0.08
|
AS568-924
|
43.69
|
0.36
|
|
AS568-909
|
17.93
|
0.23
|
2.46
±0.08
|
AS568-928
|
53.09
|
0.46
|
|
AS568-910
|
19.18
|
0.23
|
AS568-932
|
59.36
|
0.46
|
2 、JIS B2401标准
|
JIS B2401编号
|
内径d1(mm)
|
截面直径 d2(mm)
|
沟槽尺寸(mm)（参考）
|
|
尺寸
|
允许公差（±）
|
轴径
|
孔径
|
|
G25
G30
G35
G40
G45
G50
G55
G60
G65
G70
G75
G80
G85
G90
G95
G100
G105
G110
G115
G120
G125
G130
G135
G140
G145
|
24.4
29.4
34.4
39.4
44.4
49.4
54.4
59.4
64.4
69.4
74.4
79.4
84.4
89.4
94.4
99.4
104.4
109.4
114.4
119.4
124.4
129.4
134.4
139.4
144.4
|
0.25
0.29
0.33
0.37
0.41
0.45
0.49
0.53
0.57
0.61
0.65
0.69
0.73
0.77
0.81
0.85
0.87
0.91
0.94
0.98
1.01
1.05
1.08
1.12
1.16
|
3.1
±0.10
|
25
30
35
40
45
50
55
60
65
70
75
80
85
90
95
100
105
110
115
120
125
130
135
140
145
|
30
35
40
45
50
55
60
65
70
75
80
85
90
95
100
105
110
115
120
125
130
135
140
145
150
|
|
G150
G155
G160
G165
G170
G175
G180
G185
G190
G195
G200
G210
G220
G230
G240
G250
G260
G270
G280
G290
G300
|
149.3
154.3
159.3
164.3
169.3
174.3
179.3
184.3
189.3
194.3
199.3
209.3
219.3
229.3
239.3
249.3
259.3
269.3
279.3
289.3
299.3
|
1.19
1.23
1.26
1.30
1.33
1.37
1.40
1.44
1.47
1.51
1.55
1.61
1.68
1.73
1.81
1.88
1.94
2.01
2.07
2.14
2.20
|
5.7
±0.13
|
150
155
160
165
170
175
180
185
190
195
200
210
220
230
240
250
260
270
280
290
300
|
160
165
170
175
180
185
190
195
200
205
210
220
230
240
250
260
270
280
290
300
310
|
|
JIS B2401编号
|
内径d1(mm)
|
截面直径 d2(mm)
|
沟槽尺寸(mm)（参考）
|
|
尺寸
|
允许公差（±）
|
轴径
|
孔径
|
|
P3
P4
P5
P6
P7
P8
P9
P10
|
2.8
3.8
4.8
5.8
6.8
7.8
8.8
9.8
|
0.14
0.14
0.15
0.15
0.16
0.16
0.17
0.17
|
1.9
±0.08
|
3
4
5
6
7
8
9
10
|
6
7
8
9
10
11
12
13
|
|
P10A
P11
P11.2
P12
P12.5
P14
P15
P16
P18
P20
P21
P22
|
9.8
10.8
11.0
11.8
12.3
13.8
14.8
15.8
17.8
19.8
20.8
21.8
|
0.17
0.18
0.18
0.19
0.19
0.19
0.20
0.20
0.21
0.22
0.23
0.24
|
2.4
±0.09
|
10
11
11.2
12
12.5
14
15
16
18
20
21
22
|
14
15
15.2
16
16.5
18
19
20
22
24
25
26
|
|
P22A
P22.4
P24
P25
P25.5
P26
P28
P29
P29.5
P30
P31
P31.5
P32
P34
P35
P35.5
P36
P38
P39
P40
P41
P42
P44
P45
P46
P48
P49
P50
|
21.7
22.1
23.7
24.7
25.2
25.7
27.7
28.7
29.2
29.7
30.7
31.2
31.7
33.7
34.7
35.2
35.7
37.7
38.7
39.7
40.7
41.7
43.7
44.7
45.7
47.7
48.7
48.9
|
0.24
0.24
0.24
0.25
0.25
0.26
0.28
0.29
0.29
0.29
0.30
0.31
0.31
0.33
0.34
0.34
0.34
0.37
0.37
0.37
0.38
0.39
0.41
0.41
0.42
0.44
0.45
0.45
|
3.5
±0.10
|
22
22.4
24
25
25.5
26
28
29
29.5
30
31
31.5
32
34
35
35.5
36
38
39
40
41
42
44
45
46
48
49
50
|
28
28.4
30
31
31.5
32
34
35
35.5
36
37
37.5
38
40
41
41.5
42
44
45
46
47
48
50
51
52
54
55
56
|
|
JIS B2401编号
|
内径d1(mm)
|
截面直径 d2(mm)
|
沟槽尺寸(mm)（参考）
|
|
尺寸
|
允许公差（±）
|
轴径
|
孔径
|
|
P48A
P50A
P52
P53
P55
P56
P58
P60
P62
P63
P65
P67
P70
P71
P75
P80
P85
P90
P95
P100
P102
P105
P110
P112
P115
P120
P125
P130
P132
P135
P140
P145
P150
|
47.6
49.6
51.6
52.6
54.6
55.6
57.6
59.6
61.6
62.6
64.6
66.9
69.6
70.6
74.6
79.6
84.6
89.6
94.6
99.6
101.6
104.6
109.6
111.6
114.6
119.6
124.6
129.6
131.6
134.6
139.6
144.6
149.6
|
0.44
0.45
0.47
0.48
0.49
0.50
0.52
0.53
0.55
0.56
0.57
0.59
0.61
0.62
0.65
0.69
0.73
0.77
0.81
0.84
0.85
0.87
0.91
0.92
0.94
0.98
1.01
1.05
1.06
1.09
1.12
1.16
1.19
|
5.7
±0.13
|
48
50
52
53
55
56
58
60
62
63
65
67
70
71
75
80
85
90
95
100
102
105
110
112
115
120
125
130
132
135
140
145
150
|
58
60
62
63
65
66
68
70
72
73
75
77
80
81
85
90
95
100
105
110
112
115
120
122
125
130
135
140
142
145
150
155
160
|
|
JIS B2401编号
|
内径d1(mm)
|
截面直径 d2(mm)
|
沟槽尺寸(mm)（参考）
|
|
尺寸
|
允许公差（±）
|
轴径
|
孔径
|
|
P150A
P155
P160
P165
P170
P175
P180
P185
P190
P195
P200
P205
P209
P210
P215
P220
P225
P230
P235
P240
P245
P250
P255
P260
P265
P270
P275
P280
P285
P290
P295
P300
P315
P320
P335
P340
P355
P360
P375
P385
P400
|
149.5
154.5
159.5
164.5
169.5
174.5
179.5
184.5
189.5
194.5
199.5
204.5
208.5
209.5
214.5
219.5
224.5
229.5
234.5
239.5
244.5
249.5
254.5
259.5
264.5
269.5
274.5
279.5
284.5
289.5
294.5
299.5
314.5
319.5
334.5
339.5
354.5
359.5
374.5
384.5
399.5
|
1.19
1.23
1.26
1.30
1.33
1.37
1.40
1.44
1.48
1.51
1.55
1.58
1.61
1.62
1.65
1.68
1.71
1.75
1.78
1.81
1.84
1.88
1.91
1.94
1.97
2.01
2.04
2.07
2.10
2.14
2.17
2.20
2.30
2.33
2.42
2.45
2.54
2.57
2.67
2.73
2.82
|
8.4
±0.15
|
150
155
160
165
170
175
180
185
190
195
200
205
209
210
215
220
225
230
235
240
245
250
255
260
265
270
275
280
285
290
295
300
315
320
335
340
355
360
375
385
400
|
165
170
175
180
185
190
195
200
205
210
215
220
224
225
230
235
240
245
250
255
260
265
270
275
280
285
290
295
300
305
310
315
330
335
350
355
370
375
395
400
415
|
|
JIS B2401编号
|
内径d1(mm)
|
截面直径 d2(mm)
|
|
尺寸
|
允许公差（±）
|
|
V15
V24
V34
V40
V55
V70
V85
V100
V120
V150
V175
|
14.5
23.5
33.5
39.5
54.5
69.0
84.0
99.0
119.0
148.5
173.0
|
0.20
0.24
0.33
0.37
0.49
0.61
0.72
0.83
0.97
1.18
1.36
|
4
±0.10
|
|
V225
V275
V325
V380
V430
|
222.5
272.0
321.5
376.0
425.5
|
1.70
2.02
2.34
2.68
2.99
|
6
±0.15
|
|
V480
V530
V585
V640
V690
V740
V790
V845
V950
V1055
|
475.0
524.5
579.0
633.5
683.0
732.5
782.0
836.5
940.5
1044.0
|
3.30
3.60
3.92
4.24
4.54
4.83
5.12
5.44
6.06
6.67
|
10
±0.30
|
备注：G—固定密封用O形圈尺寸；P—运动密封用O形圈尺寸；V—真空机械密封用O形圈尺寸。
3、GB T3452.1标准（一般通用G系列）
|
内径d1(mm)
|
截面直径 d2(mm)
|
|
尺寸
|
公差±
|
1.8±0.08
|
2.65
|
3.55
|
5.3±0.13
|
7±0.15
|
|
±0.09
|
±0.10
|
|
1.8
|
0.13
|
×
|
|
|
|
|
|
2
|
0.13
|
×
|
|
|
|
|
|
2.24
|
0.13
|
×
|
|
|
|
|
|
2.5
|
0.13
|
×
|
|
|
|
|
|
2.8
|
0.13
|
×
|
|
|
|
|
|
3.15
|
0.14
|
×
|
|
|
|
|
|
3.55
|
0.14
|
×
|
|
|
|
|
|
3.75
|
0.14
|
×
|
|
|
|
|
|
4
|
0.14
|
×
|
|
|
|
|
|
4.5
|
0.15
|
×
|
|
|
|
|
|
4.75
|
0.15
|
×
|
|
|
|
|
|
4.87
|
0.15
|
×
|
|
|
|
|
|
5
|
0.15
|
×
|
|
|
|
|
|
5.15
|
0.15
|
×
|
|
|
|
|
|
5.3
|
0.15
|
×
|
|
|
|
|
|
5.6
|
0.16
|
×
|
|
|
|
|
|
6
|
0.16
|
×
|
|
|
|
|
|
6.3
|
0.16
|
×
|
|
|
|
|
|
6.7
|
0.16
|
×
|
|
|
|
|
|
6.9
|
0.16
|
×
|
|
|
|
|
|
7.1
|
0.16
|
×
|
|
|
|
|
|
7.5
|
0.17
|
×
|
|
|
|
|
|
8
|
0.17
|
×
|
|
|
|
|
|
8.5
|
0.17
|
×
|
|
|
|
|
|
8.75
|
0.18
|
×
|
|
|
|
|
|
9
|
0.18
|
×
|
|
|
|
|
|
9.5
|
0.18
|
×
|
|
|
|
|
|
9.75
|
0.18
|
×
|
|
|
|
|
|
10
|
0.19
|
×
|
|
|
|
|
|
10.6
|
0.19
|
×
|
×
|
|
|
|
|
11.2
|
0.2
|
×
|
×
|
|
|
|
|
11.6
|
0.2
|
×
|
×
|
|
|
|
|
11.8
|
0.19
|
×
|
×
|
|
|
|
|
12.1
|
0.21
|
×
|
×
|
|
|
|
|
12.5
|
0.21
|
×
|
×
|
|
|
|
|
12.8
|
0.21
|
×
|
×
|
|
|
|
|
13.2
|
0.21
|
×
|
×
|
|
|
|
|
14
|
0.22
|
×
|
×
|
|
|
|
|
14.5
|
0.22
|
×
|
×
|
|
|
|
|
15
|
0.22
|
×
|
×
|
|
|
|
|
15.5
|
0.23
|
×
|
×
|
|
|
|
|
16
|
0.23
|
×
|
×
|
|
|
|
|
17
|
0.24
|
×
|
×
|
|
|
|
|

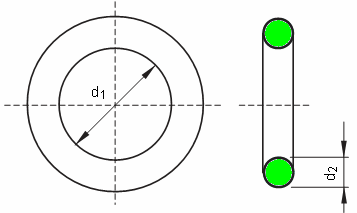

内径d1(mm)
|
截面直径 d2(mm)
|
|
尺寸
|
公差±
|
1.8±0.08
|
2.65±0.09
|
3.55±0.10
|
5.3±0.13
|
7±0.15
|
|
18
|
0.25
|
×
|
×
|
×
|
|
|
|
19
|
0.25
|
×
|
×
|
×
|
|
|
|
20
|
0.26
|
×
|
×
|
×
|
|
|
|
20.6
|
0.26
|
×
|
×
|
×
|
|
|
|
21.2
|
0.27
|
×
|
×
|
×
|
|
|
|
22.4
|
0.28
|
×
|
×
|
×
|
|
|
|
23
|
0.29
|
×
|
×
|
×
|
|
|
|
23.6
|
0.29
|
×
|
×
|
×
|
|
|
|
24.3
|
0.3
|
×
|
×
|
×
|
|
|
|
25
|
0.3
|
×
|
×
|
×
|
|
|
|
25.8
|
0.31
|
×
|
×
|
×
|
|
|
|
26.5
|
0.31
|
×
|
×
|
×
|
|
|
|
27.3
|
0.32
|
×
|
×
|
×
|
|
|
|
28
|
0.32
|
×
|
×
|
×
|
|
|
|
29
|
0.33
|
×
|
×
|
×
|
|
|
|
30
|
0.34
|
×
|
×
|
×
|
|
|
|
31.5
|
0.35
|
×
|
×
|
×
|
|
|
|
32.5
|
0.36
|
×
|
×
|
×
|
|
|
|
33.5
|
0.36
|
×
|
×
|
×
|
|
|
|
34.5
|
0.37
|
×
|
×
|
×
|
|
|
|
35.5
|
0.38
|
×
|
×
|
×
|
|
|
|
36.5
|
0.38
|
×
|
×
|
×
|
|
|
|
37.5
|
0.39
|
×
|
×
|
×
|
|
|
|
38.7
|
0.4
|
×
|
×
|
×
|
|
|
|
40
|
0.41
|
×
|
×
|
×
|
×
|
|
|
41.2
|
0.42
|
×
|
×
|
×
|
×
|
|
|
42.5
|
0.43
|
×
|
×
|
×
|
×
|
|
|
43.7
|
0.44
|
×
|
×
|
×
|
×
|
|
|
45
|
0.44
|
×
|
×
|
×
|
×
|
|
|
46.2
|
0.45
|
×
|
×
|
×
|
×
|
|
|
47.5
|
0.46
|
×
|
×
|
×
|
×
|
|
|
48.7
|
0.47
|
×
|
×
|
×
|
×
|
|
|
50
|
0.48
|
×
|
×
|
×
|
×
|
|
|
51.5
|
0.49
|
|
×
|
×
|
×
|
|
|
53
|
0.5
|
|
×
|
×
|
×
|
|
|
54.5
|
0.51
|
|
×
|
×
|
×
|
|
|
56
|
0.52
|
|
×
|
×
|
×
|
|
|
58
|
0.54
|
|
×
|
×
|
×
|
|
|
60
|
0.55
|
|
×
|
×
|
×
|
|
|
61.5
|
0.56
|
|
×
|
×
|
×
|
|
|
63
|
0.57
|
|
×
|
×
|
×
|
|
|
65
|
0.58
|
|
×
|
×
|
×
|
|
|
67
|
0.6
|
|
×
|
×
|
×
|
|
|
内径d1(mm)
|
截面直径 d2(mm)
|
|
尺寸
|
公差±
|
1.8±0.08
|
2.65
|
3.55
|
5.3±0.13
|
7±0.15
|
|
±0.09
|
±0.10
|
|
69
|
0.61
|
|
×
|
×
|
×
|
|
|
71
|
0.63
|
|
×
|
×
|
×
|
|
|
73
|
0.64
|
|
×
|
×
|
×
|
|
|
75
|
0.65
|
|
×
|
×
|
×
|
|
|
77.5
|
0.67
|
|
×
|
×
|
×
|
|
|
80
|
0.69
|
|
×
|
×
|
×
|
|
|
82.5
|
0.71
|
|
×
|
×
|
×
|
|
|
85
|
0.72
|
|
×
|
×
|
×
|
|
|
87.5
|
0.74
|
|
×
|
×
|
×
|
|
|
90
|
0.76
|
|
×
|
×
|
×
|
|
|
92.5
|
0.77
|
|
×
|
×
|
×
|
|
|
95
|
0.79
|
|
×
|
×
|
×
|
|
|
97.5
|
0.81
|
|
×
|
×
|
×
|
|
|
100
|
0.82
|
|
×
|
×
|
×
|
|
|
103
|
0.85
|
|
×
|
×
|
×
|
|
|
106
|
0.87
|
|
×
|
×
|
×
|
|
|
109
|
0.89
|
|
×
|
×
|
×
|
×
|
|
112
|
0.91
|
|
×
|
×
|
×
|
×
|
|
115
|
0.93
|
|
×
|
×
|
×
|
×
|
|
118
|
0.95
|
|
×
|
×
|
×
|
×
|
|
122
|
0.97
|
|
×
|
×
|
×
|
×
|
|
125
|
0.99
|
|
×
|
×
|
×
|
×
|
|
128
|
1.01
|
|
×
|
×
|
×
|
×
|
|
132
|
1.04
|
|
×
|
×
|
×
|
×
|
|
136
|
1.07
|
|
×
|
×
|
×
|
×
|
|
140
|
1.09
|
|
×
|
×
|
×
|
×
|
|
142.5
|
1.11
|
|
×
|
×
|
×
|
×
|
|
145
|
1.13
|
|
×
|
×
|
×
|
×
|
|
147.5
|
1.14
|
|
×
|
×
|
×
|
×
|
|
150
|
1.16
|
|
×
|
×
|
×
|
×
|
|
152.5
|
1.18
|
|
|
×
|
×
|
×
|
|
155
|
1.19
|
|
|
×
|
×
|
×
|
|
157.5
|
1.21
|
|
|
×
|
×
|
×
|
|
160
|
1.23
|
|
|
×
|
×
|
×
|
|
162.5
|
1.23
|
|
|
×
|
×
|
×
|
|
165
|
1.26
|
|
|
×
|
×
|
×
|
|
167.5
|
1.28
|
|
|
×
|
×
|
×
|
|
170
|
1.29
|
|
|
×
|
×
|
×
|
|
172.5
|
1.31
|
|
|
×
|
×
|
×
|
|
175
|
1.33
|
|
|
×
|
×
|
×
|
|
177.5
|
1.34
|
|
|
×
|
×
|
×
|
|
180
|
1.36
|
|
|
×
|
×
|
×
|
|
182.5
|
1.38
|
|
|
×
|
×
|
×
|
|
内径d1(mm)
|
截面直径 d2(mm)
|
|
尺寸
|
公差±
|
1.8±0.08
|
2.65±0.09
|
3.55±0.10
|
5.3±0.13
|
7±0.15
|
|
185
|
1.39
|
|
|
×
|
×
|
×
|
|
187.5
|
1.41
|
|
|
×
|
×
|
×
|
|
190
|
1.43
|
|
|
×
|
×
|
×
|
|
195
|
1.46
|
|
|
×
|
×
|
×
|
|
200
|
1.49
|
|
|
×
|
×
|
×
|
|
203
|
1.51
|
|
|
|
×
|
×
|
|
206
|
1.53
|
|
|
|
×
|
×
|
|
212
|
1.57
|
|
|
|
×
|
×
|
|
218
|
1.61
|
|
|
|
×
|
×
|
|
224
|
1.65
|
|
|
|
×
|
×
|
|
227
|
1.67
|
|
|
|
×
|
×
|
|
230
|
1.69
|
|
|
|
×
|
×
|
|
236
|
1.73
|
|
|
|
×
|
×
|
|
239
|
1.75
|
|
|
|
×
|
×
|
|
243
|
1.77
|
|
|
|
×
|
×
|
|
250
|
1.82
|
|
|
|
×
|
×
|
|
254
|
1.84
|
|
|
|
×
|
×
|
|
258
|
1.87
|
|
|
|
×
|
×
|
|
261
|
1.89
|
|
|
|
×
|
×
|
|
265
|
1.91
|
|
|
|
×
|
×
|
|
268
|
1.92
|
|
|
|
×
|
×
|
|
272
|
1.96
|
|
|
|
×
|
×
|
|
276
|
1.98
|
|
|
|
×
|
×
|
|
280
|
2.01
|
|
|
|
×
|
×
|
|
283
|
2.03
|
|
|
|
×
|
×
|
|
286
|
2.05
|
|
|
|
×
|
×
|
|
290
|
2.08
|
|
|
|
×
|
×
|
|
295
|
2.11
|
|
|
|
×
|
×
|
|
300
|
2.14
|
|
|
|
×
|
×
|
|
303
|
2.16
|
|
|
|
×
|
×
|
|
307
|
2.19
|
|
|
|
×
|
×
|
|
311
|
2.21
|
|
|
|
×
|
×
|
|
315
|
2.24
|
|
|
|
×
|
×
|
|
320
|
2.27
|
|
|
|
×
|
×
|
|
325
|
2.3
|
|
|
|
×
|
×
|
|
330
|
2.33
|
|
|
|
×
|
×
|
|
335
|
2.36
|
|
|
|
×
|
×
|
|
340
|
2.4
|
|
|
|
×
|
×
|
|
345
|
2.43
|
|
|
|
×
|
×
|
|
350
|
2.46
|
|
|
|
×
|
×
|
|
355
|
2.49
|
|
|
|
×
|
×
|
|
360
|
2.52
|
|
|
|
×
|
×
|
|
365
|
2.56
|
|
|
|
×
|
×
|
|
内径d1(mm)
|
截面直径 d2(mm)
|
|
尺寸
|
公差±
|
1.8±0.08
|
2.65
|
3.55
|
5.3±0.13
|
7±0.15
|
|
±0.09
|
±0.10
|
|
370
|
2.59
|
|
|
|
×
|
×
|
|
375
|
2.62
|
|
|
|
×
|
×
|
|
379
|
2.64
|
|
|
|
×
|
×
|
|
383
|
2.67
|
|
|
|
×
|
×
|
|
387
|
2.7
|
|
|
|
×
|
×
|
|
391
|
2.72
|
|
|
|
×
|
×
|
|
395
|
2.75
|
|
|
|
×
|
×
|
|
400
|
2.78
|
|
|
|
×
|
×
|
|
406
|
2.82
|
|
|
|
|
×
|
|
412
|
2.85
|
|
|
|
|
×
|
|
418
|
2.89
|
|
|
|
|
×
|
|
425
|
2.93
|
|
|
|
|
×
|
|
429
|
2.96
|
|
|
|
|
×
|
|
433
|
2.99
|
|
|
|
|
×
|
|
437
|
3.01
|
|
|
|
|
×
|
|
443
|
3.05
|
|
|
|
|
×
|
|
450
|
3.09
|
|
|
|
|
×
|
|
456
|
3.13
|
|
|
|
|
×
|
|
462
|
3.17
|
|
|
|
|
×
|
|
466
|
3.19
|
|
|
|
|
×
|
|
470
|
3.22
|
|
|
|
|
×
|
|
475
|
3.25
|
|
|
|
|
×
|
|
479
|
3.28
|
|
|
|
|
×
|
|
483
|
3.3
|
|
|
|
|
×
|
|
内径d1(mm)
|
截面直径 d2(mm)
|
|
尺寸
|
公差±
|
1.8±0.08
|
2.65±0.09
|
3.55±0.10
|
5.3±0.13
|
7±0.15
|
|
487
|
3.33
|
|
|
|
|
×
|
|
493
|
3.36
|
|
|
|
|
×
|
|
500
|
3.41
|
|
|
|
|
×
|
|
508
|
3.46
|
|
|
|
|
×
|
|
515
|
3.5
|
|
|
|
|
×
|
|
523
|
3.55
|
|
|
|
|
×
|
|
530
|
3.6
|
|
|
|
|
×
|
|
538
|
3.65
|
|
|
|
|
×
|
|
545
|
3.69
|
|
|
|
|
×
|
|
553
|
3.74
|
|
|
|
|
×
|
|
560
|
3.78
|
|
|
|
|
×
|
|
570
|
3.85
|
|
|
|
|
×
|
|
580
|
3.91
|
|
|
|
|
×
|
|
590
|
3.97
|
|
|
|
|
×
|
|
600
|
4.03
|
|
|
|
|
×
|
|
608
|
4.08
|
|
|
|
|
×
|
|
615
|
4.12
|
|
|
|
|
×
|
|
623
|
4.17
|
|
|
|
|
×
|
|
630
|
4.22
|
|
|
|
|
×
|
|
640
|
4.28
|
|
|
|
|
×
|
|
650
|
4.34
|
|
|
|
|
×
|
|
660
|
4.4
|
|
|
|
|
×
|
|
670
|
4.47
|
|
|
|
|
×
|
|
注：表中“×”表示包括的规格
|
注：内径大于670mm的公差为内径的0.64%。
4、 非标制件尺寸公差
(1).非标O形圈的线径公差
|
线径
|
公差
|
线径
|
公差
|
线径
|
公差
|
|
≥0.00
|
±0.08
|
≥12.00
|
±0.23
|
≥20.75
|
±0.35
|
|
≥2.62
|
±0.09
|
≥12.75
|
±0.24
|
≥21.50
|
±0.36
|
|
≥3.00
|
±0.10
|
≥13.50
|
±0.25
|
≥22.25
|
±0.37
|
|
≥3.55
|
±0.12
|
≥14.25
|
±0.26
|
≥23.00
|
±0.38
|
|
≥5.00
|
±0.13
|
≥15.00
|
±0.27
|
≥23.50
|
±0.39
|
|
≥5.70
|
±0.14
|
≥15.75
|
±0.28
|
≥24.25
|
±0.40
|
|
≥8.40
|
±0.15
|
≥16.50
|
±0.29
|
≥25.00
|
±0.41
|
|
≥8.75
|
±0.18
|
≥17.25
|
±0.30
|
≥25.75
|
±0.42
|
|
≥9.25
|
±0.19
|
≥17.75
|
±0.31
|
≥26.25
|
±0.43
|
|
≥10.00
|
±0.20
|
≥18.50
|
±0.32
|
≥27.00
|
±0.44
|
|
≥10.75
|
±0.21
|
≥19.25
|
±0.33
|
≥30.00
|
±0.45
|
|
≥11.25
|
±0.22
|
≥20.00
|
±0.34
|
|
|
(2).非标制件公差标准
ISO 3302-1为模制实心橡胶制件在固定尺寸和封闭尺寸方便建立了四个等级：
² M1级——精密模制零件的等级。这类模制零件需要精密的模具，较少的行腔，紧密的配合等等，这样会导致较高的成本。光学分析仪或其他类似的测量装置会被使用到，以在测量时将橡胶制品的变形减少到最小程度。这一类型的产品需要付出较高的监控成本。
² M2 级——高质量模制零件的等级，包括许多M1级中必须的精密控制。
² M3 级——良好模制零件等级
² M4 级——要求尺度并不严格的模制零件等级

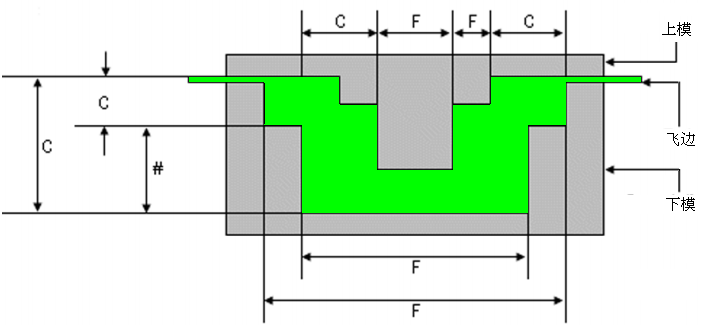

上图中，F—固定尺寸。尺寸不会受到诸如飞边厚度或模具的不同部分（上模和下模或模芯）横向位移的影响。
C—封闭尺寸。尺寸会受到飞边或不同模具部分横向位移的变化而变化。
#—固定尺寸。范例高度尺寸，不受飞边厚度的影响，故被称为“固定”尺寸。
表3-1 非标制件公差等级
|
额定尺寸
|
M1级
|
M1级
|
M3级
|
M4级
|
|
大于
|
小于等于
|
F ±
|
C ±
|
F ±
|
C ±
|
F ±
|
C ±
|
F和C ±
|
|
0
|
4.0
|
0.08
|
0.10
|
0.10
|
0.15
|
0.25
|
0.40
|
0.50
|
|
4.0
|
6.3
|
0.10
|
0.12
|
0.15
|
0.20
|
|
6.3
|
10
|
0.10
|
0.15
|
0.20
|
0.20
|
0.30
|
0.50
|
0.70
|
|
10
|
16
|
0.15
|
0.20
|
0.20
|
0.25
|
0.40
|
0.60
|
0.80
|
|
16
|
25
|
0.20
|
0.20
|
0.25
|
0.35
|
0.50
|
0.80
|
1.00
|
|
25
|
40
|
0.20
|
0.25
|
0.35
|
0.40
|
0.60
|
1.00
|
1.30
|
|
40
|
63
|
0.25
|
0.35
|
0.40
|
0.50
|
0.80
|
1.30
|
1.60
|
|
63
|
100
|
0.35
|
0.40
|
0.50
|
0.70
|
1.00
|
1.60
|
2.0
|
|
100
|
160
|
0.40
|
0.50
|
0.70
|
0.80
|
1.30
|
2.0
|
2.5
|
|
160
|
—
|
0.3%
|
0.4%
|
0.5%
|
0.7%
|
0.8%
|
1.3%
|
1.5%
|
